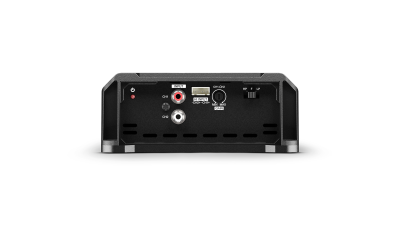

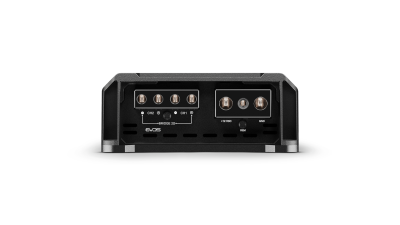

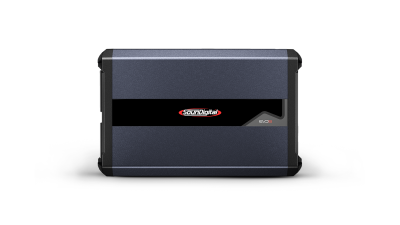

SOUNDIGITAL SD2000.2-2 EVO 5

2000.2 EVO 5 – 2 OHMS

RMS Power @ 1Ω: 2 X 1000 WRMS RMS Power @ 2Ω: 2 X 660 WRMS RMS Power in Bridge @ 2Ω: 1 X 2000 WRMS RMS Power in Bridge @ 4Ω: 1 X 1320 WRMS

2000.2 EVO 5 – 4 OHMS

RMS Power @ 1Ω: N/A RMS Power @ 2Ω: 2 X 1000 WRMS RMS Power in Bridge @ 2Ω: N/A

RMS Power in Bridge @ 4Ω: 1 X 2000 WRMS

Frequency Response (-3dB):

10Hz ~ 20kHz

Low Pass Filter (LP -12dB/8):

80Hz

High Pass Filter (HP -12dB/8):

80Hz

Supply Voltage:

8V ~ 16V

SNR:

90dB

Input Sensitivity:

0.2~2V

Consumption with music signal:

2Ω: 89A 4Ω: 88A

Consumption with resistive load (1kHz @ 12.6V):

2Ω: 178A 4Ω: 176A

Total Efficiency:

2Ω: 89% 4Ω: 90%

Damping Factor (@100Hz Nominal Impedance):

200

Minimum Impedance Per Stereo Channel:

2Ω: 1 ohm
4Ω: 2 ohms

Minimum Impedance Per Bridge:

2Ω: 2 ohms 4Ω: 4 ohms

Recommended Fuse (Musical):

100A

Recommended Battery (Minimum for Music Use):

100Ah

Width:

13.6 cm

Length:

22.8 cm

Height:

5.5 cm

Weight:

1.58 kg
