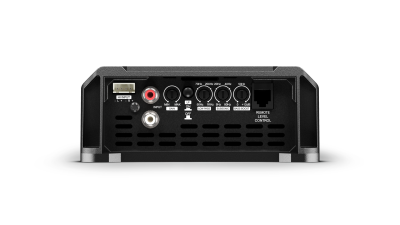

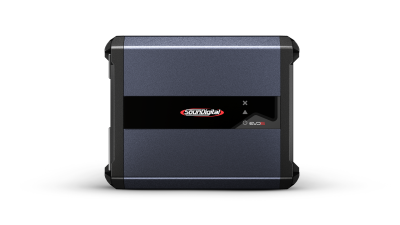

SounDigital 1600.1 EVO 5 Ενισχυτής Αυτοκινήτου 1 Καναλιού 1600W RMS
The amplifier has unique and patented technologies that make the sound experience cleaner and more faithful, besides ensuring better performance and efficiency for the most daring projects.
General SpecificationsGeneral Specifications
+
1600.1 EVO 5 - 1 OHM
Power @ 1Ω: 1 X 1600 WRMSPower @ 2Ω: 1 X 1056 WRMSPower @ 4Ω: 1 X 697 WRMS
1600.1 EVO 5 - 2 OHMS
Power @ 1Ω: N/APower @ 2Ω: 1 X 1600 WRMSPower @ 4Ω: 1 X 1056 WRMS
1600.1 EVO 5 - 4 OHMS
Power @ 1Ω: N/APower @ 2Ω: N/APower @ 4Ω: 1600 WRMS
Response Frequency (-3dB):
5Hz ~ 25kHz
Subsonic Filter:5Hz ~ 80Hz
Low Pass Filter:
50Hz ~ 1kHz
Graves Reinforcement:
0dB ~ 12dB @ 50Hz
Power Voltage:
9V ~16V
Signal-To-Noise Ratio:
1Ω: 93.7dB2Ω: 95dB4Ω: 93.4dB
Input Sensitivity:
0.2V ~2V
Music Consumption:
1Ω: 75A2Ω: 71A4Ω: 69.4A
With Resistive Load:
1Ω: 149A2Ω: 143A4Ω: 138.8A
Total Efficiency:
1Ω: 85%2Ω: 89%4Ω: 91.5%
Damping Factor:
>2000
Power Cord:16mm² (5 AWG)
Audio Output Cable:
2 x 1.5 mm² (15 AWG)
Recommended Fuse (Musical):
80A
Recommended Battery (Minimum for Music Use):
80ah
Width:
13.6 cm
Length:
18 cm
Height:
5.48 cm
Weight:
1.13 kg
