Eton RSX 80
Κωδικός: H-1.0801.15
Άμεσα διαθέσιμο
Τιμή
€ 389,00
Ποσότητα

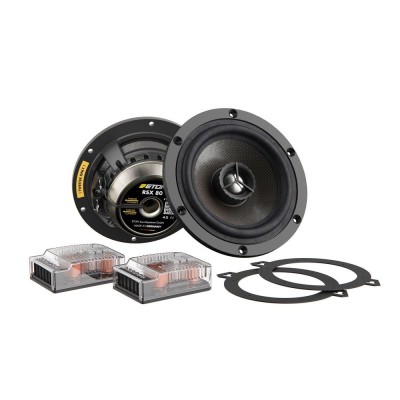

Eton RSX 80 3″ 2 Way (80mm) Ομοαξονικό
Nominal impedance 4 Ohm
Resonance freq. 1 W 116 Hz
Resonance freq. 130 Hz
Mechanical Q QMS 4.74
Electrical Q QES 0.71
Total Q QT 0.60
Voice coil diameter 25 mm
Voice coil former Aluminium
Voice Coil length 7 mm
Lagen Voice Coil layers 2
Force factor BL x l 3.30 Tm
Mass of speaker 0.33 kg
Characteristic sound 87 dB SPL
DIN size 80 mm
Mounting diameter ø 77 mm
Mounting depth 33.9 mm
Basket material Aluminium
Cone material Carbon Rohacell
Tweeter, integrated ø 15 / 0,6 mm /
| Woofer / midrange | 80 mm |
| Tweeter | 15 mm |
| Impedance | 4 ohms |
| Nominal / music load capacity | 50/80 W. |
| Characteristic sound pressure | 87 dB |
| outer diameter | 80 mm |
| Cutout diameter | 77 mm |
| Installation depth | 33.9 mm |
Resonance freq. 1 W 116 Hz
Resonance freq. 130 Hz
Mechanical Q QMS 4.74
Electrical Q QES 0.71
Total Q QT 0.60
Voice coil diameter 25 mm
Voice coil former Aluminium
Voice Coil length 7 mm
Lagen Voice Coil layers 2
Force factor BL x l 3.30 Tm
Mass of speaker 0.33 kg
Characteristic sound 87 dB SPL
DIN size 80 mm
Mounting diameter ø 77 mm
Mounting depth 33.9 mm
Basket material Aluminium
Cone material Carbon Rohacell
Tweeter, integrated ø 15 / 0,6 mm /
