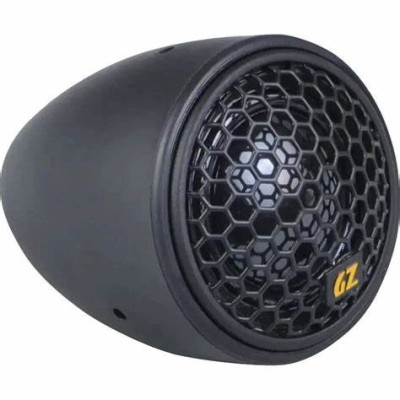

28 mm, 1.1″ dome tweeter with surface housing and in-line high pass filter
Model | High-performance tweeter with Mylar dome |
---|---|
Diameter | 28 mm / 1.1″ |
Power handling (RMS/max.) | 80 / 110 Watts |
Impedance | 4 Ohms |
Efficiency | 86 dB |
Frequency Response | 2500 Hz – 20 kHz |
Crossover frequency | 5500 Hz |
Voice coil | 28 mm / 1.1″ |
Dome | Mylar |
Mounting Ø | 48 mm / 1.89″ |
Mounting depth | 16 mm / 0.63″ |
