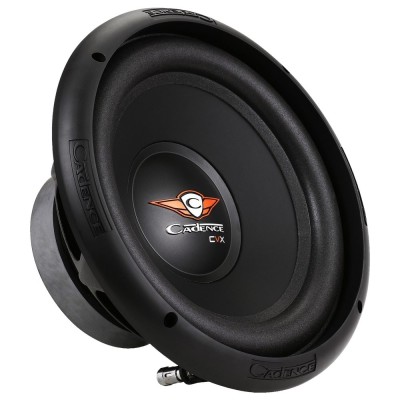

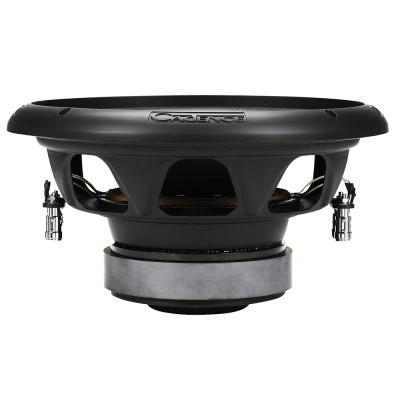

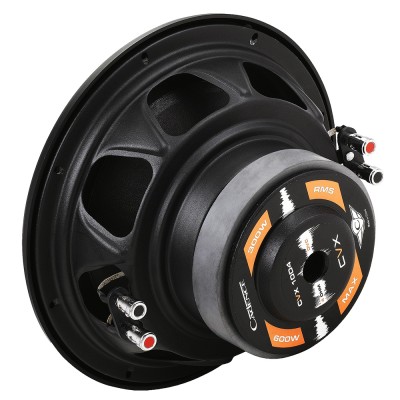

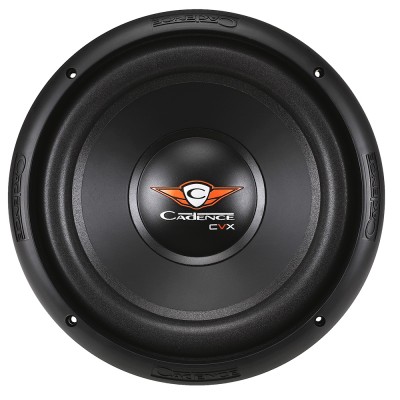

GENERAL | CVX10D4 |
---|---|
Size | 10″ |
Impedance (ohm) | 2 ohm |
Cone material | Black Matte Finish Pressed Paper |
Surround material | Foam |
Voice coil | 2” High Temperature ASV |
Ideal sealed box volume (cu ft / liter) | 0.8/12.66 |
Ideal ported box volume (cu ft / liter) | 1.32/37.38 |
Port Sq (inch / mm) | 1.5 x 10.5/38.1 x 266.7 |
Port length (inch / mm) | 13/330.2 |
Dual voice coil | Yes |
Sensitivity (1W / 1mm) | 87 dB |
Frequency response | 34 Hz – 1.8 kHz |
RMS (watts) | 300 |
Peak power handling (watts) | 600 |
